Mining Seats & Heavy Equipment Seats For Sale Melbourne

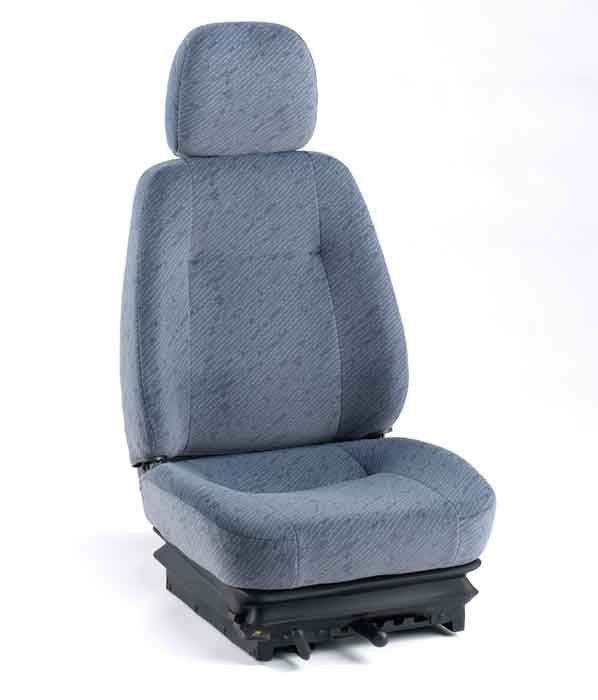

The 21/T1 model boasts a 50mm vertical suspension stroke, accommodating driver weights from 50-120kg. It includes backrest angle adjustment, mechanical lumbar support, and a versatile 160mm fore and aft adjustment with 216mm lateral centres, all wrapped in a protective suspension cover.

The 411 features a mechanical suspension system, which offers a 100mm vertical suspension stroke and manual adjustment for drivers weighing 50-120kg (110-265lb). It has a 60mm seat height and tilt adjustment, backrest angle adjustment, 160mm fore and aft adjustment, and a suspension cover for added durability.

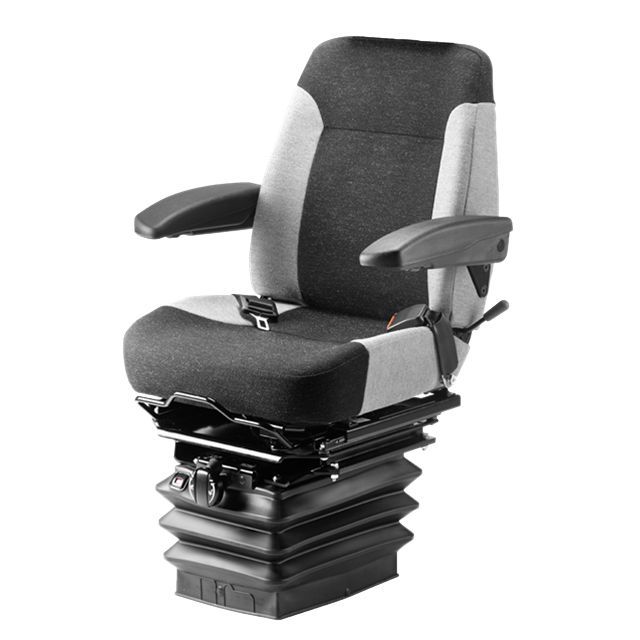

The KAB 111 Mid Back seat has been designed using our durable 100 series mechanical suspension suitable for small to medium-sized vehicles.

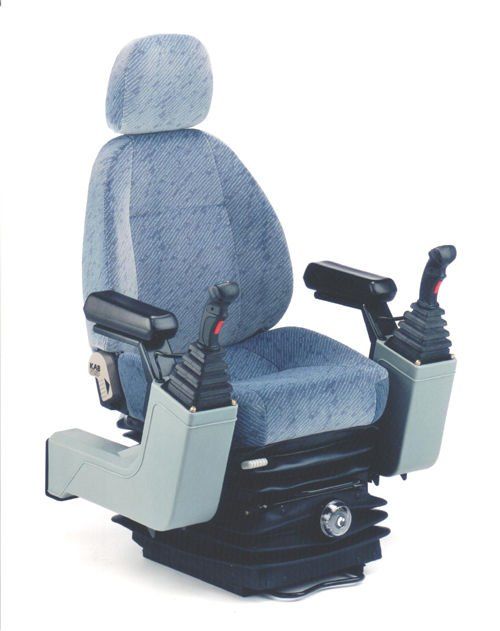

Features a 100mm vertical suspension stroke, manual weight adjustment for drivers ranging from 50 to 120kg (525 variant: 50 to 150kg), 60mm seat height and tilt adjustment, backrest angle adjustment, 200mm fore and aft adjustment, suspension cover, and ISO 7096 vibration performance.

The 61/K1 is a mid-back mechanical suspension seat from the New 600 series range. Wide platform for improved stability and reduced free play in heavy-duty applications.

Space-saving and cost effective, this one piece seat upper is for use in static applications or with XL2, XH2, 11 or 15 suspensions.

It features a 90mm vertical suspension stroke, manual weight adjustment (50-120kg), 70mm height adjustment, and one-piece foam and PVC trim. Includes a rigid steel pan, ventilation and drainage grooves, base drainage holes, and EEC 78/764 vibration performance compliance.

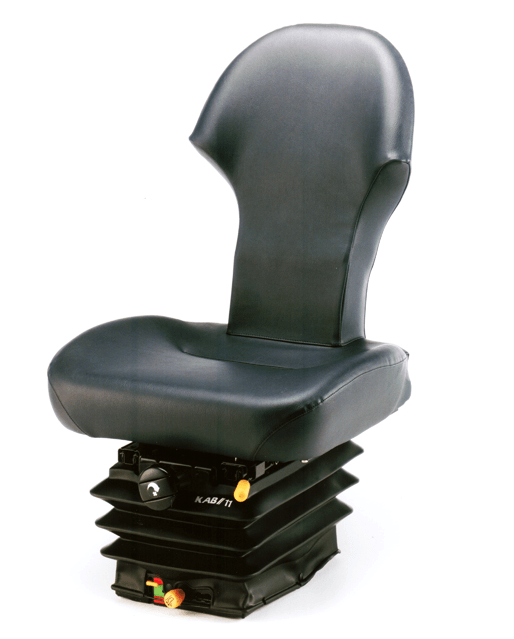

This seat has been designed specifically for mining operations. It has been designed to accommodate breathing apparatus, hence the cutaway back cushion.

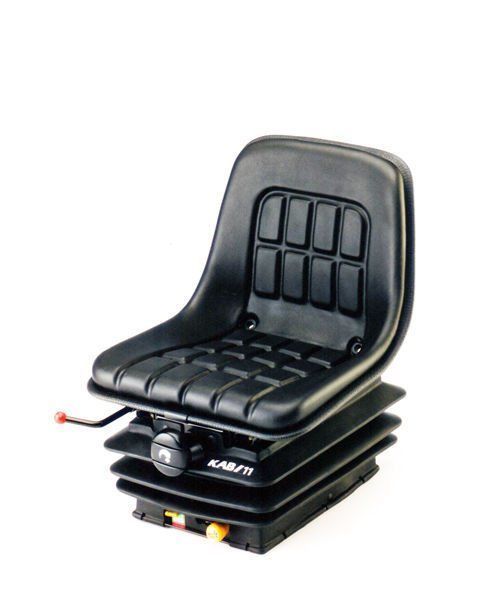

The 11/P4 model delivers comfort and safety with an 80mm vertical suspension stroke and integral height adjustment (70mm). It features weight adjustment (50-120kg), a ride indicator, a suspension cover, and compliance with vibration standards. Its design includes foam & PVC trim, a rigid steel pan, ventilation, drainage, contoured grooves, and a high backrest for support.

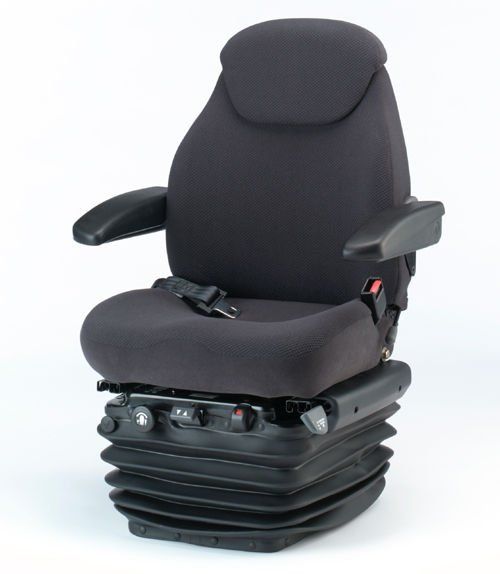

The Air 85/E1 is tailored for agricultural and construction sectors, boasting air suspension with a 12V integral compressor and 175mm vertical stroke. Features include 70mm height adjustment, 75mm integral height adjustment, driver weight adjustment (50-120kgs/110-265lbs), ride indicator, suspension cover, 5-position lumbar support, and backrest angle adjustment for enhanced comfort and customisation.

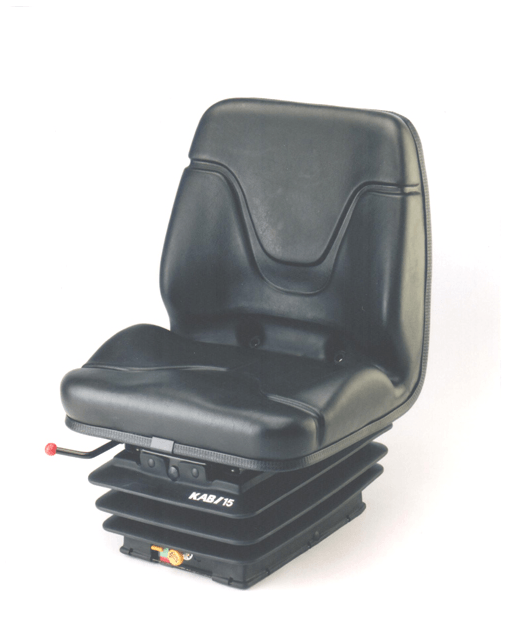

The Air 15/P4 seat is equipped with an integral air compressor, offering an 80mm vertical suspension stroke and 70mm integral height adjustment. It accommodates driver weights from 50-120kg features a ride indicator, suspension cover, and P4 upper for added durability. Additionally, it meets stringent vibration performance standards, boasts robust seat belt anchorage strength, and allows for 150mm fore and aft adjustment.

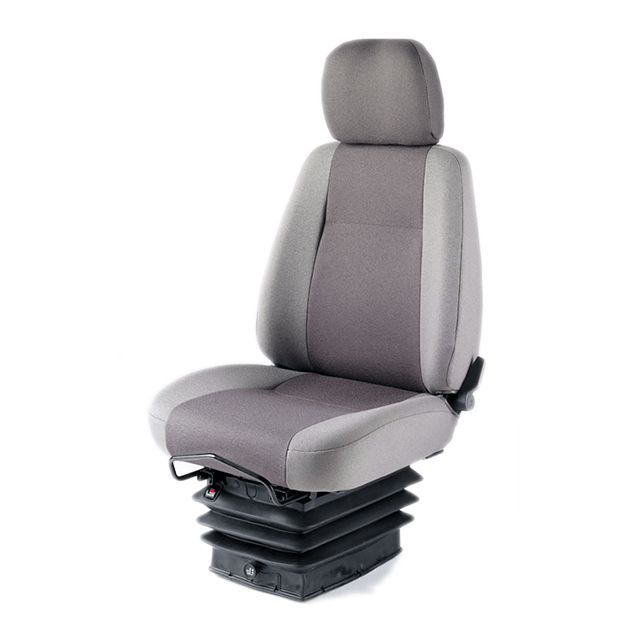

The T1 model offers a high-quality static seat option where suspension may not be necessary. Features include backrest angle adjustment, with options for seat height and tilt adjustment (60mm or 100mm), fore and aft adjustment (160mm), and mechanical or pneumatic lumbar support. It also provides cushion heaters (12v or 24v), an adjustable headrest, pivoting armrests, a seat belt, a range of fabric and PVC trims, and a fixed backrest with a document pouch for added convenience.

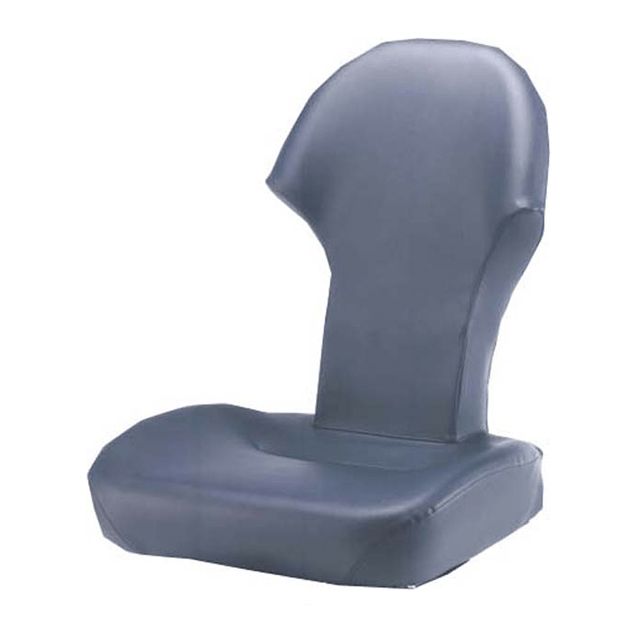

Fixed back medium height upper in PVC trim for use in underground mining vehicles. Based on the T1 seat upper assembly with Cutaways in the backrest to allow for miners' air bottle and torches.

The 115 seat is a mechanical suspension seat suitable for a wide range of small to medium-sized vehicle applications. This seat is also fitted with a 2-point seat belt.

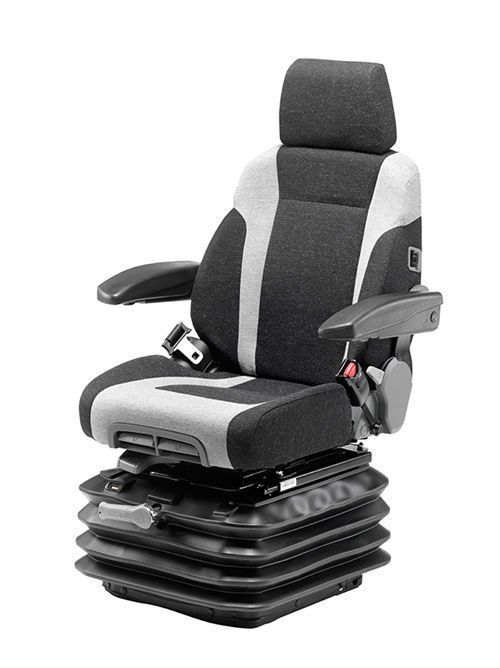

Introducing the 65/K4, a high-back air suspension seat designed for heavy-duty applications in the New 600 series range. It boasts a low natural frequency air suspension, 160mm vertical stroke, and manual weight adjustment accommodating operators from 50 to 200kg, with 60mm integral seat height adjustment, backrest angle adjustment, and 160mm fore and aft adjustment for personalised comfort. Additional features include a suspension cover, 5-position lumbar support, 50mm seat cushion length adjustment, 7.5-degree seat tilt adjustment in 3 positions, adjustable headrest, and 50mm fore and aft isolator for enhanced stability.

KAB Seating's new Sentinel seat is a premium solution for forklift trucks and small construction machines. Equipped with Air 60mm auto ride suspension for enhanced comfort, sensors, and heaters. Enjoy the luxury of leather and fabric trim, additional lumbar support, and convenient features like a document pouch.

The new Sentinel range is suitable for material handling and small construction vehicles. The range has been designed with user safety and comfort in mind, with easy-to-use features that maintain user productivity in hard-working environments.

Compact air suspension ideally suited to telehandlers rough terrain forklifts, and agricultural utility vehicles. The mid-back T1 seat upper affords good back support.

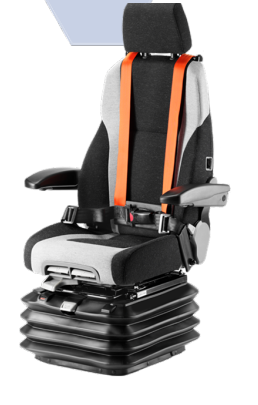

The 65/K4C offers adjustable damping and superior comfort

features to improve the overall ride for the user. Additional

to damping and fore/aft adjustment, the seat also includes heater and mechanical lumbar. Suitable for a wide range of construction vehicles, the

65/K4C is equipped with a headrest, armrests and 4 point

seat belt.

The Heavy Duty suspension on this seat makes the seat well suited for tough construction environments over rugged terrain. The reinforced mechanism helps to protect vehicle users from shocks and injuries.
